Introducing the MIDAS 2, the industry leader in mis-fuel prevention, acting as the last line of defence in the fuel delivery process. With all the reliability of the original MIDAS, the MIDAS 2 comes equipped with a host of new features and has been designed specifically for portable use with an increased focus on user experience making it our most functional and feasible product yet.

RFID Connection



Each fill point is assigned a specific RFID tag which contains the fuel type of the tank, the site location, and the tank number.

LCD Display



The 16-character LCD screen is programmed to give the driver detailed instruction as to what stage of the delivery the MIDAS 2

is at

Innovative Re-charging



The MIDAS 2 variations all come equipped with a new innovative technology that allows the MIDAS to recharge during operation.

Bluetooth Connectivity



The MIDAS has the ability to store data from each operation for up to 12 months. This includes delivery dates, mis-fuel analysis, site locations and much more.


battery icon.png
bluetooth icon.png
RFID icon.png
100% Correct Fuel Identification

Midas is a system that is fitted to the above or below ground filling points on each bulk fuel storage tank at petrol filling stations. The unit comprises of a valve with intelligent control that can discriminate between petrol and diesel grades of fuel. The purpose of the unit is to stop the wrong product entering the tank and causing a misfuel / crossover.

The device will be calibrated during installation for either Diesel or Petrol products, the system will then instantly read the fuel that’s being delivered and if correct open the valve to allow the filling operation to continue. If an incorrect fuel type is detected the valve will stay closed and the unit will alarm both audibly and visually to alert the driver to the mistake.


2,000,000+ succcesful deliveries

The Midas utilises a low current high torque motor to operate the control valve. The valve offers a complete seal against product entering the unit from the delivery side and likewise for vapour build up from the tank side. This ensures that when the cap is opened there is no excessive release of VOC vapours around the delivery driver position.



All communication to and from the Midas is done wirelessly via infra-red communications. The system is fully automated and requires no interaction from the tanker driver except for a prompt to “wake up”. Motion activated key fobs are required to interact with the Midas for functions such as normal operation, override and reset.



Compact 3.png

MIDAS COMPACT



The MIDAS compact offers the best solution to above ground fuel delivery. Fitting seamlessly into any delivery process, improving handling, and giving you the ultimate MIDAS protection are just a few of the benefits to using the MIDAS compact.



Compact RFID connection For the compact variation, each fill point adaptor is fitted with an RFID bracket. This contains the fuel type, site address and tank number. When the  MIDAS is connected to the fill point, the RFID reader at the base of the MIDAS unit, will automatically  detect the fuel type of the storage tank it is  connected to and calibrate the unit accordingly. This ensures the correct fuel type will only ever pass through the MIDAS.

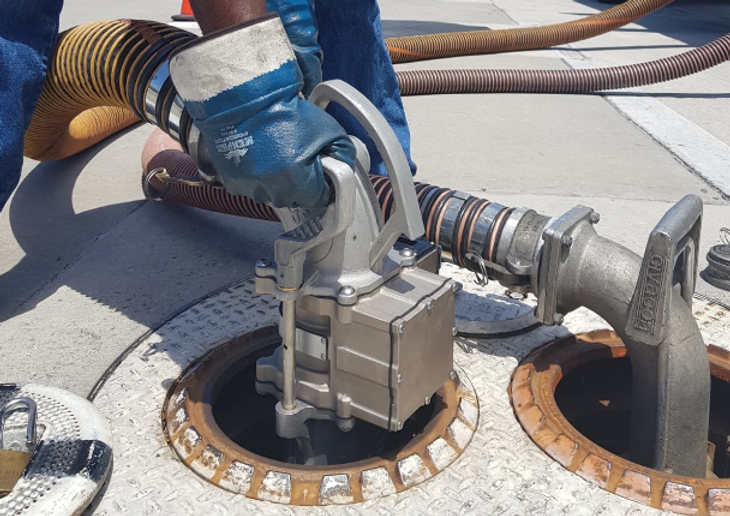

MIDAS ELBOW



An RFID tag in the spill bucket communicates the fuel grade to the Elbow, then the Elbow reads the fuel type being delivered into a gas station’s bulk storage tank, thus avoiding contamination from gas, diesel and water. If the correct fuel is dropped, the Midas Elbow valve allows the fuel drop to continue. If the wrong fuel is delivered, the Midas Elbow remains closed, disallowing the wrong fuel from being dropped.



The device also sounds an audible alarm and sends a readable message to the driver alerting he or she that there was a problem with the fuel choice, allowing the driver to rectify the error. No incorrect fuel ever reaches the UST tank.

MIDAS FIXED



Similar to the MIDAS 1, the MIDAS 2 can be used as a fixed product. Situated permanently at the fill point either above or below ground the MIDAS is pre calibrated by a trained engineer to the fuel type of the tank is connected too. This removes the need for RFID connectivity and activates using a simple push button.

1000's of Installations Worldwide
